Load Moment Indicator Cost in Pune with Load Limiter Features

A Pune quotation can range from a basic overload cut-out to a complete load moment indicator with boom sensors, rated-capacity data and motion interlocks. To compare prices properly, separate the equipment from installation and calibration, then match the system to the crane’s geometry, load chart and required limiter actions.

Key takeaways

Separate equipment, installation, commissioning and GST in every quotation.
Choose automatic motion cut-out when an alarm alone cannot control overload risk.
Compare 5-ton, 20-ton and 50-ton systems using the same scope.
Request sensor details, calibration records and a documented overload test.

What a Pune quotation should include beyond the equipment price

Budget ₹35,000–₹1,25,000 before GST for a basic load limiter with a load cell, display and overload cut-out. A mobile-crane LMI with boom-angle, length, radius sensing and a rated-capacity database needs a larger allowance: roughly ₹1,25,000–₹4,00,000 before GST. High-end systems with data logging or telematics can exceed that range.

The phrase “load limiter cost in pune” is not a complete specification.

Option	Indicative equipment budget	What the quotation must show separately
Basic overhead-crane limiter	₹35,000–₹1,25,000 before GST	Installation, load-cell calibration, hoist cut-out wiring and certificate
Mobile or telescopic-crane LMI	₹1,25,000–₹4,00,000 before GST	Angle, length and radius sensors, configuration database, commissioning and training
Custom or multi-sensor installation	Above the standard band	Fabrication, panel modification, extra displays, data logging and telematics

Ask the supplier to itemise every charge rather than hiding it inside one total. Require separate lines for GST, Pune-to-site travel, transport, mounting brackets, cable routing, junction boxes, welding or fabrication, crane-panel modification, shutdown labour, commissioning, calibration certificates and operator training.

Also confirm whether the quoted system only gives an audible or visual alarm, or interrupts hoist, trolley or boom movement. Specify relay contacts, contactor-interlock wiring, emergency-stop integration, beacon, buzzer, remote display and data logging when required.

A search for “load moment indicator cost load for limiter in pune” still needs this scope before two quotations are comparable.

Load limiter features: alarm only or automatic motion cut-out?

An alarm-only limiter warns you; it does not stop the crane. A functional cut-out detects a programmed overload threshold and interrupts the selected motion through relay contacts or contactor-interlock wiring. A display showing excess load is not equivalent to protection that prevents the hazardous movement.

Option	What it does	What to specify
Alarm only	Activates a buzzer, beacon or display warning	Alarm threshold, sounder location and visual indication
Hoist cut-out	Stops further upward lifting after overload	Hoist-up isolation point and reset method
Motion cut-out	Inhibits selected crane movements	Hoisting, lowering, trolley travel, telescoping, luffing or slewing
LMI protection	Compares load moment with rated capacity for the crane configuration	Load, radius, boom angle, length and configuration limits

Before accepting a quote, require the supplier to state:

Which motions are inhibited and whether lowering is included
Whether the cut-out uses relay contacts, contactor interlock or emergency-stop integration
Whether manual override is allowed, who controls it and how it is recorded
Alarm beacon, buzzer, local display and remote display requirements
Data logging, overload-event storage and reset permissions
Installation, wiring, commissioning and calibration responsibilities

For a fixed overhead crane, a load cell, display, alarm and hoist cut-out is often enough. A full LMI adds sensors and configuration logic that the crane may not need. An indicative load limiter cost in Pune is ₹35,000–₹1,25,000 before GST, installation and calibration; motion logic and sensing points can change that quote substantially.

Why crane type and load radius change the LMI price

A 20 ton load moment indicator in Pune costs more when it must calculate changing radius, not merely detect a 20-ton hoist load. Load moment equals lifted load multiplied by working radius: the horizontal distance from the crane’s centre of rotation to the hook or load line.

A mobile-crane LMI derives that radius from boom angle, boom length and geometry, then compares the result with a rated-capacity chart.

Compatibility check	Overhead or gantry crane limiter	Mobile or knuckle-boom crane LMI
Main measurement	Load cell, load pin or rope-tension sensor	Load, boom angle, boom length and radius
Capacity reference	Fixed overload threshold	Configuration-specific rated-capacity database
Motion protection	Hoist-up and trolley-travel cut-outs	Hoist, boom, telescope, slew or winch cut-outs
Installation question	Control-panel voltage, sensor location and available interlock circuit	Boom sensor mounting, hydraulic or electrical interfaces, geometry and calibration
Price driver	Number of lifting points and wiring length	Sensors, software, capacity charts, data logging and commissioning

For a fixed overhead crane, adding boom-angle and radius sensors creates cost without useful protection unless the lifting geometry changes. A basic limiter may budget around ₹35,000–₹1,25,000 before GST, installation and calibration; a mobile-crane LMI commonly falls around ₹1,25,000–₹4,00,000 before GST.

Before accepting compatibility, verify:

The sensor’s rated capacity and calibration certificate.
The control voltage and relay or contactor interface.
The crane’s actual load-radius envelope, not only its nameplate capacity.
Whether the supplier will enter the correct rated-capacity chart and test every cut-out.

Compare 5-ton, 20-ton and 50-ton systems on the same scope

A 5 ton load moment indicator price is not comparable with a 20-ton or 50-ton quote unless every supplier prices the same safety function, sensors and service scope. A 5-ton overhead-crane limiter may use one calibrated load pin, a display and hoist cut-out; a 5-ton mobile-crane LMI needs boom angle, boom length and radius sensing.

Capacity	Typical measurement and hardware	Cost comparison issue
5 tons	Overhead crane: load cell or load pin, display, buzzer and hoist cut-out	A basic load limiter can cost less than a mobile-crane system carrying the same load
20 tons	Overhead crane: vertical-load protection; mobile crane: load, angle, length, radius and chart data	A 20 ton load moment indicator in Pune is priced by the crane’s radius envelope, not the 20-ton label
50 tons	Mobile or telescopic crane: multiple sensors, rated-capacity chart, configuration database and movement cut-outs	A 50 ton load moment indicator in Pune can cover very different maximum moments at different boom lengths and radii

Compare quotations only after matching the crane model, boom and jib configurations, maximum radius, reeving, sensor interfaces, display location, alarm logic, cut-outs, installation, commissioning, calibration, warranty and annual service. Ask suppliers to separate equipment, wiring, site survey, transport, GST and testing.

The key figure is load moment: lifted load multiplied by working radius, adjusted against the crane’s rated-capacity chart. A 20-ton crane at a short radius is not equivalent to a 20-ton crane operating at maximum radius, where boom geometry can trigger protection sooner.

The Pune RFQ checklist: sensors, commissioning and proof of protection

Require a sensor schedule, cut-out logic and commissioning evidence before you compare quotations. A search for “load moment indicator cost load for limiter in pune” is not a specification: the supplier needs your crane model, rated capacity chart, maximum radius, boom and jib configuration, reeving arrangement and required movements to be interrupted.

RFQ item	Require in writing	Reject or question if
Sensors	Load cell or load pin; angle, length and radius sensors where the crane geometry requires them	The quote says only “sensor”
Outputs	Audible and visual alarms, relay contacts, contactor-interlock wiring, emergency-stop integration and remote display	“Overload protection” has no defined cut-out
Installation	Brackets, cable routing, junction boxes, panel modifications, fabrication and site travel	These appear as unspecified extras
Commissioning	Configuration against the capacity chart, calibration certificate, functional cut-out test and operator training	Delivery is called commissioning
Records	Sensor serial numbers, test readings, warranty response time and annual service scope	No acceptance document is supplied

For mobile cranes, require a demonstration at a known load and radius, including boom-length changes. The test must prove that hoist, telescope, luff or slew cut-outs operate as specified; an alarm alone is not proof of protection.

Ask SMARTITA PRIVATE LIMITED or any competing supplier to state whether the quoted load limiter cost in Pune includes GST, installation, calibration and shutdown time. Get each excluded item priced separately before approval.

Related products

Load Moment Indicators

5 Ton Load Moment Indicator (LMI)

₹35000

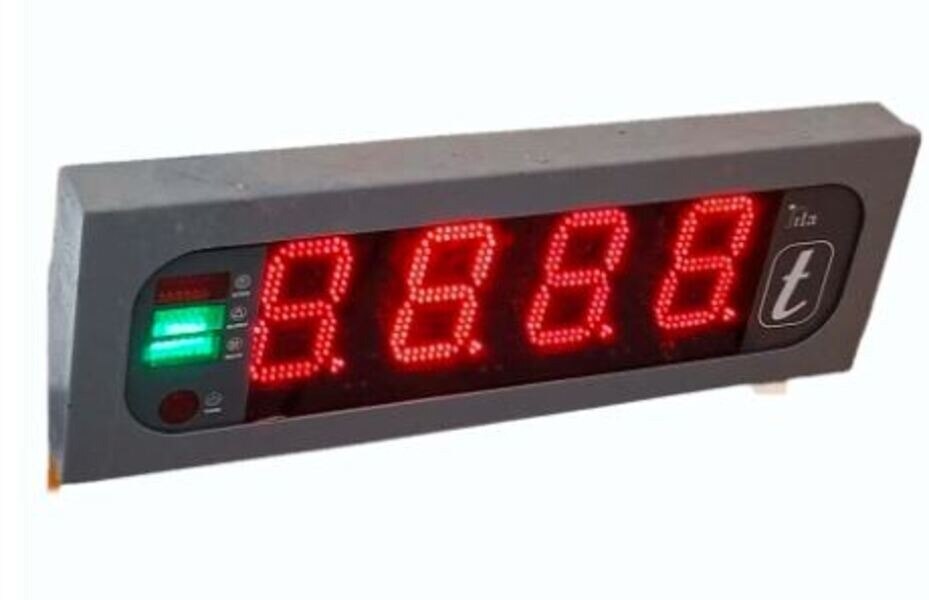

5 Ton Load Moment Indicator (LMI) Price: ₹35,000/Piece The 5 Ton Load Moment Indicator (LMI) from SmartITA Pvt. Ltd.
